Image-Based Visual Servoing

On-Line Estimation of 3D Structure and Focal Length



In the classical Image-Based visual servoing (IBVS) framework, the errors signals are directly computed from image feature extracted on the image plane. In this way, an exact 3D model of the target is not required for the servoing, and the control scheme just tries to reach a given visual pattern defined as a desired image.

However, some 3D information are still needed for a correct servoing execution: for instance, in the case of point features (the simplest 3D primitives), the current depth Z must be known in order to accurately compute the so-called interaction matrix. Usually a coarse estimation of Z (e.g., the constant value at the desired pose) may be sufficient for the servoing fulfillment, but global/exponential decoupled convergence is lost due to this approximation.

In view of this problem, we propose here a general framework able to recover online the missing 3D information needed by visual servoing schemes. The idea is to design an observer that builds upon the known dynamics of such quantities, and exploits the online measurements taken from a moving camera as a feedback signal. Under suitable assumptions of persistency of excitation, convergence of the observer can be proven and, as a consequence, asymptotic recovery of the 3D structure of the target becomes possible.

Although the proposed framework has a general validity, the physical interpretation of the persistency of excitation condition depends on the specific visual feature used for the servoing. For instance, in the case of a point feature, the observer converges if and only if the camera is moving with a nonzero linear velocity (a rotation may also be present). It is interesting to note that this kind of constraint on the camera motion, already well known in the computer vision literature on structure/motion identification, can be rigorously derived with arguments based on the nonlinear observer theory. In this sense, our attempt is to merge classical computer vision issues within the framework of nonlinear system analysis.

As an interesting extension, the same observer structure can also be used to recover the unknown focal length of a camera, by exploiting the 'dual' motions of the point feature case, i.e., zero camera translation. In this case the estimation task is easier w.r.t. 3D quantities because the focal length is an unknown but constant parameter.

Documents

The observation framework has been developed by A. De Luca, G. Oriolo and P. Robuffo Giordano and published on the following papers in chronological order:



Simulations: case of a point feature

Matlab simulation

On the left two plots of a matlab simulation are reported. In this case the observer is asked to estimate the unknown initial depth of a static point feature (set at 0.5 m away from the image plane) while the camera performs a complex rototranslation motion. The initial depth state of the observer is set at 1.0 m. On the left picture the feature/depth error are shown, while on the right picture the behavior of true and estimated Z is reported. Note how the estimated value quickly approaches the true value despite of a complex camera motion.

Error behavior True and estimated Z
Webots simulation

In this second simulation, the observer is tested in a more realistic environment, i.e., within a 3D simulated world (Webots) where a nonholonomic mobile manipulator (NMM) with a camera on the end-effector tracks the red dot on the cubic target. The presence of noise on the extracted image coordinates does not prevent the estimation convergence, as it can be checked in the two pictures on the right.

A video clip of this simulation can be found here.

Error behavior True and estimated Z

Simulations: case of a generic shape

Sometimes tracking and matching individual structures during the camera motion, i.e., solving the so-called correspondence problem, is not easy or convenient (think to dense objects as spheres, ellipsoids, etc.). When this is the case, IBVS schemes usually rely on more global (integral) features, like image moments, instead of local descriptors like feature points. Indeed, moments can be directly evaluated on any arbitrary shape on the image plane and are free of the correspondence problem that typically affects the identification of common geometric structures.

Of course, these nice properties come at a price: when considering moments, the 3D information present in the relative interaction matrix does not reduce to a simple punctual depth, but more general 3D structures are involved.

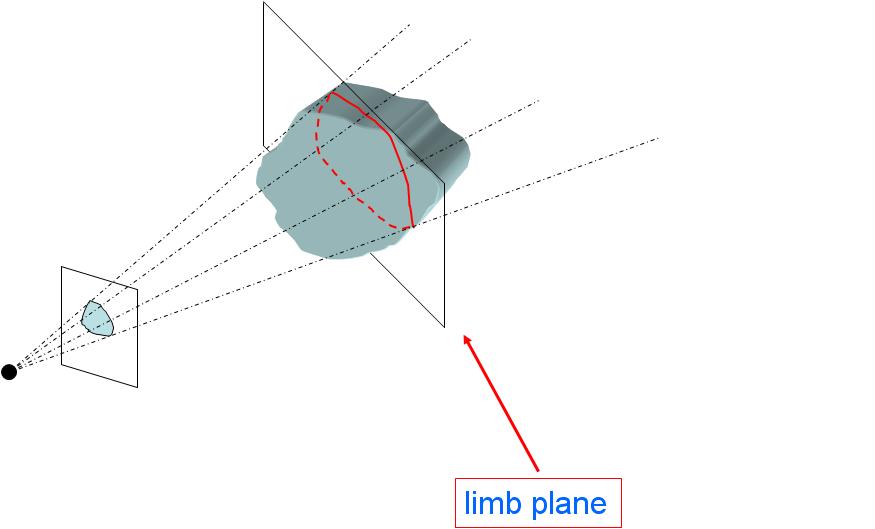

To understand this fact, consider the figure on the right. One can associate to most 3D shapes a special plane, called limb plane, made of all those 3D points whose projection traces the shape contour on the image plane. It can be shown that the 3D information needed by the interaction matrix of a generic moment is the unit normal vector of the limb plane scaled by its distance from the camera optical center.

As in the point feature case, it is possible to extend our observation scheme also to this case, and recover online the missing 3D information.

Webots simulation

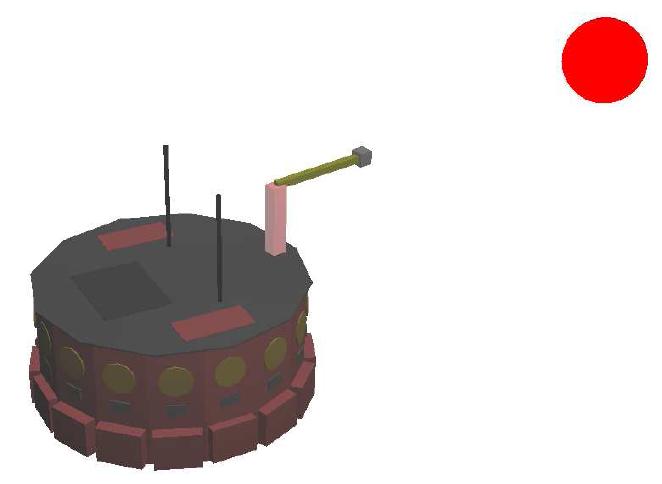

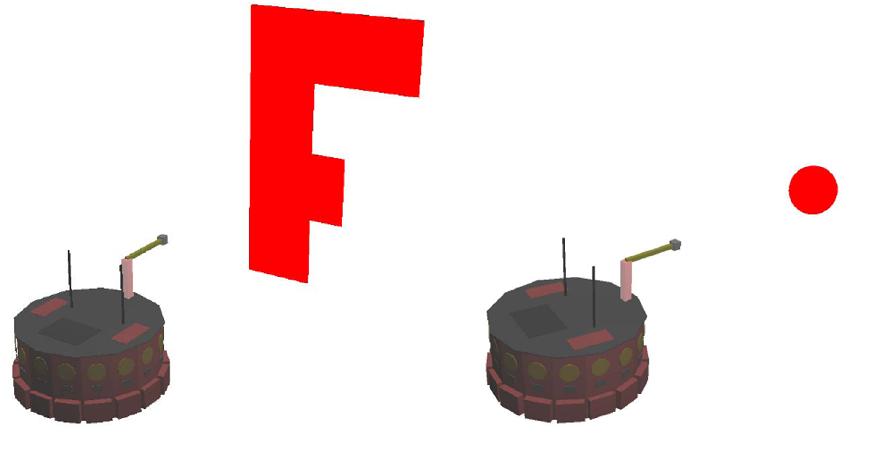

In this simulation, we tested again the observer in the Webots environment. The moments used for the estimation are the area a and the barycenter (xg, yg) measured from the projection of a sphere with radius R=0.07 [m] and lying at a distance of about 0.4 [m] from the camera. As before, the robot is commanded with a predefined periodic motion to provide the needed camera mobility.

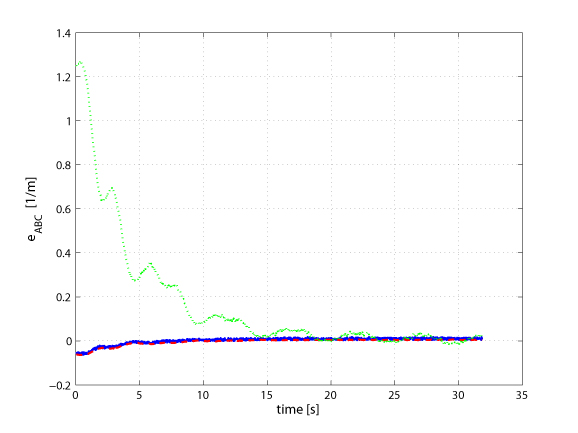

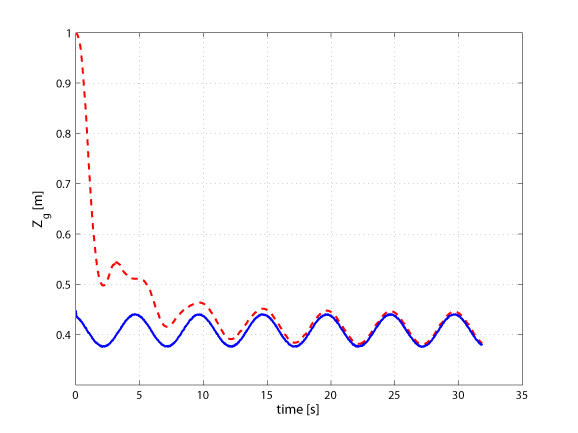

The left picture shows the error in estimating the three components of the scaled normal vector, i.e., all the information needed by the interaction matrix. By exploiting the estimated distance of the limb plane, it is also possible to recover other 3D information like the depth of the center of the sphere, as shown in the right picture.

A video clip of this and other simulations can be found here.

Error behavior True and estimated Z

Experiments: case of a point feature

Robot and target object

In our experiments, we used a unicycle-like robot equipped with a fixed camera mounted on its top. This design can be seen as a particular case of the more general class of standard manipulator arms mounted on a nonholonomic mobile platform, thus realizing a nonholonomic mobile manipulator (NMM). More details on kinematic modeling and control for NMMs can be found here, while in this page the specific case of IBVS tasks for NMMs is discussed.

As for the target to be tracked, we chose a vertical planar object with 4 black dots placed at the vertexes of a rectangular shape.
Unicycle-like mobile robot carrying a fixed camera Planar target object
Servoing with point features

In this first set of experiments, we tested the "integrated" approach by regulating the positions of the 4 target black dots (regarded as point features). We run 4 experiments by keeping the same initial and final poses of the robot (see the pictures on the right), but by varying the initial observer states, i.e., the initial depth guesses for each feature.
In particular, the observer was initialized with the values of 8 m, 5 m, 3 m, and 1.6 m, while the true initial and final depths were 3.9 m and 0.96 m, respectively.

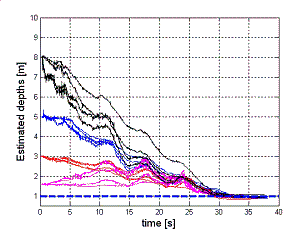

Despite the very different (and wrong) initial depth guesses, the servoing was always fulfilled in each experiment, thanks to the good convergence properties of the observer. The plot below shows the evolution of the estimated depths for all the experiments. It is then possible to verify that, during the motion, each depth estimate converges to a common value, i.e., the final true depth of the target at the final pose (0.96 m, represented by the horizontal blue dashed line).

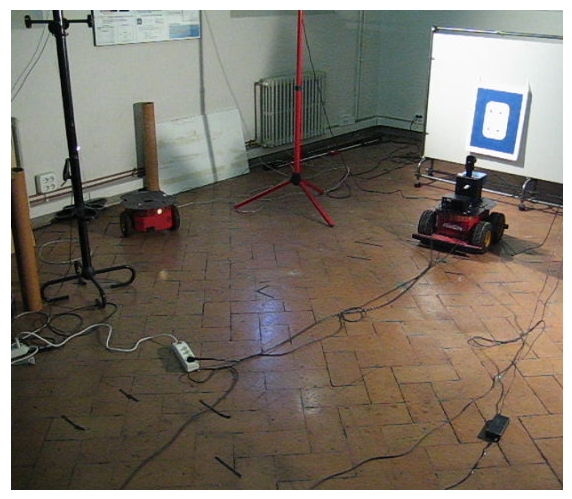

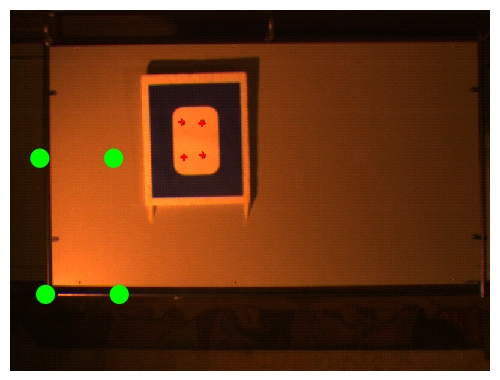

Starting pose (external and internal views) Final pose (external and internal views)
Servoing with image moments

In the second set of experiments we considered a more sophisticated kind of features: image moments. In particular, we chose to regulate the values of the barycenter and the area enclosed by the 4 target black dots. Similarly as before, we run 5 experiments by keeping the same starting and final robot poses, and by initializing the depth observer with the values of 0.9 m, 3 m, 5 m, 8 m, and 16 m, respectively

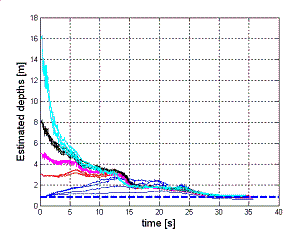

Again, despite the very different and wrong initial depth guesses, the servoing task was always fulfilled, and the depth estimates converged to the depth value of the final robot pose. This converging behavior can be appreciated in the plot below, where the horizontal blue dashed line represents the final depth value.

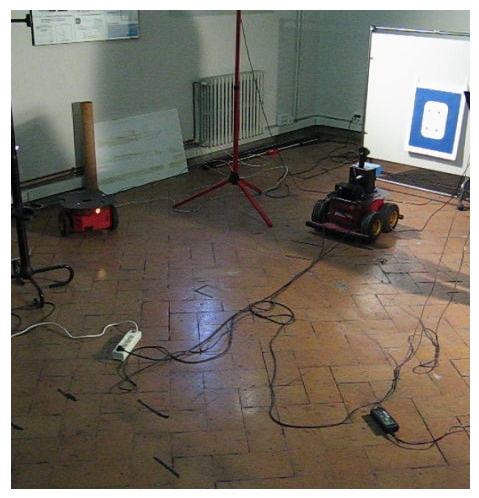

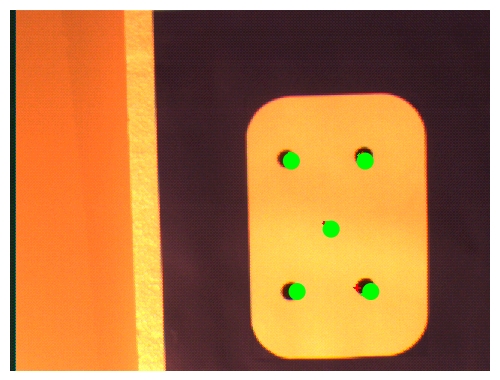

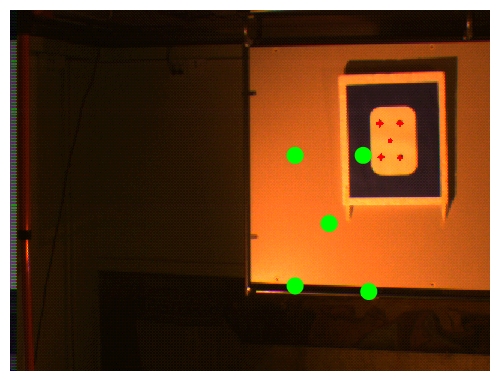

Starting pose (external and internal views) Final pose (external and internal views)
Estimation of the focal length

In this last experiment, the goal was to estimate the focal length of the camera while the robot was tracking a feature point during its motion. This estimation was performed by using an extension of the proposed observer as discussed at the beginning of the page.
The plot on the right shows the time behavior of the estimated focal length (starting from the value of 0 pixels), while the red line represents the nominal value obtained with standard calibration techniques. As a result of this experiment, the mean of the estimated value after 30 sec of motion (i.e., after the initial transient phase) is very close to the nominal value: we obtained a focal length of 1093 pixels against a nominal value of 1100 pixels.

We wish to thank Prof. Prattichizzo and his team for their support to our experiments.
True and estimated focal length The Pioneer robot used for the experiment

Video

We propose a sample video representative of all the experiments. Note how, at the beginning, the servoing is not converging, i.e., the feature points are not approaching the desired positions. This is a direct effect of the intial wrong depth estimation. After some seconds, however, the observer converges and a proper image plane feature trajectory is recovered, allowing the realization of the visual task.
