MipResources::DraWin Class Reference
[Draw window]

"Abstract" resource DraWin More...

#include <DraWin.h>

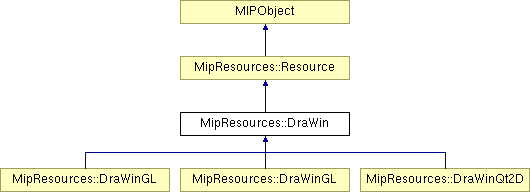

Inheritance diagram for MipResources::DraWin:

List of all members.

Public Member Functions
	DraWin ()
	Default constructor. The list 0 is created by default.
	~DraWin ()
	Destructor.
virtual ResourcePlate	getPlate () const =0
	Gets the plate.
bool	addList (Time timeout, unsigned int &listNum)
	Add a drawing list.
bool	swapList (Time timeout, unsigned int listNum)
	Draw the last pushed objects, delete previous objects.
bool	pushObj (DraWinObj *draWinObj, Time timeout, unsigned int listNum=0)
	Push an object in the list. Push a pointer to a drawing object in a drawing list, the object must be allocated before the object will be visible only when swapList will be called.
bool	overlapObj (DraWinObj *draWinObj, Time timeout, unsigned int listNum=0)
	Overlap an object in the list. Add a pointer to a drawing object in a drawing list, the object must be allocated before the object will be suddenly visible. If the number of objects in the list excedes DRA_WIN_RES_LIST_SIZE older objects are removed (wake effect).
bool	clearList (Time timeout, unsigned int listNum)
	Identic to swapList. Draw the last pushed objects, delete previous objects.
bool	accuList (Time timeout, unsigned int listNum)
	Identic to swapList. Draw the last pushed objects, delete previous objects.
Public Attributes
DraWinVar	_draWinVar
	DraWin parameters.
Protected Member Functions
int	_listsTrylock ()
int	_listsUnlock ()
Protected Attributes
vector< DraWinList * >	_draWinLists
	lists of _drawWinList pointers (mobile pointers used to toggle between A and B)
vector< DraWinList * >	_draWinListsA
	lists of the first bank of _drawWinLists pointers
vector< DraWinList * >	_draWinListsB
	lists of the second bank of _drawWinLists pointers
vector< unsigned int >	_indexA
vector< unsigned int >	_indexB

---

Detailed Description

"Abstract" resource DraWin

Todo:

Make _draWinVar protected.

Examples:

exampleDraWin.cpp.

---

Constructor & Destructor Documentation

MipResources::DraWin::DraWin

(

)

[inline]

Default constructor. The list 0 is created by default.

MipResources::DraWin::~DraWin

(

)

[inline]

Destructor.

---

Member Function Documentation

int MipResources::DraWin::_listsTrylock

(

)

[inline, protected]

Try to lock the mutex of _drawWinLists (non blocking)

Returns:

zero if successful. Otherwise, an error number is returned to indicate the error (see man pthread_mutex_trylock)).

int MipResources::DraWin::_listsUnlock

(

)

[inline, protected]

Unlock the mutex of _drawWinLists

Returns:

zero if successful; otherwise an error number shall be returned to indicate the error (see man pthread_mutex_unlock).

virtual ResourcePlate MipResources::DraWin::getPlate

(

)

const [pure virtual]

Gets the plate.

Returns:

Plate.

Implements MipResources::Resource.

Implemented in MipResources::DraWinGL, MipResources::DraWinQt2D, and MipResources::DraWinGL.

bool MipResources::DraWin::addList	(	Time	timeout,
		unsigned int &	listNum
	)

Add a drawing list.

Note:

Mutexed access is necessary because all the list of lists could be reallocated in the push_back.

Returns:

True if the drawing list was correctly added, false otherwise.

Parameters:

[in]	timeout	Timeout for adding retries.
[out]	listNum	Number of the list, use it to push and to swap.

Examples:

exampleDraWin.cpp.

bool MipResources::DraWin::swapList	(	Time	timeout,
		unsigned int	listNum
	)

Draw the last pushed objects, delete previous objects.

Returns:

True if the drawing list was correctly swapped, false otherwise.

Parameters:

[in]	timeout	Timeout for swapping retries
[out]	listNum	Number of the list to swap.

Examples:

exampleDraWin.cpp.

bool MipResources::DraWin::pushObj	(	DraWinObj *	draWinObj,
		Time	timeout,
		unsigned int	listNum = 0
	)

Push an object in the list. Push a pointer to a drawing object in a drawing list, the object must be allocated before the object will be visible only when swapList will be called.

Returns:

True if the drawing object was correctly added, false otherwise or if the list is not present.

Parameters:

[in]	draWinObj	Valid pointer to a drawing object to be pushed.
[in]	timeout	Timeout for pushing retries.
[in]	listNum	Number of the list to use (inf not specified the default 0 is used).

Examples:

exampleDraWin.cpp.

bool MipResources::DraWin::overlapObj	(	DraWinObj *	draWinObj,
		Time	timeout,
		unsigned int	listNum = 0
	)

Overlap an object in the list. Add a pointer to a drawing object in a drawing list, the object must be allocated before the object will be suddenly visible. If the number of objects in the list excedes DRA_WIN_RES_LIST_SIZE older objects are removed (wake effect).

Returns:

true if the drawing object was correctly added, false otherwise or if the list is not present

Parameters:

[in]	draWinObj	Valid pointer to a drawing object to be overlapped.
[in]	timeout	Timeout for pushing retries.
[in]	listNum	Number of the list to use (inf not specified the default 0 is used).

Examples:

exampleDraWin.cpp.

bool MipResources::DraWin::clearList	(	Time	timeout,
		unsigned int	listNum
	)			[inline]

Identic to swapList. Draw the last pushed objects, delete previous objects.

Returns:

True if the drawing list was correctly swapped, false otherwise.

Parameters:

[in]	timeout	Timeout for swapping retries
[out]	listNum	Number of the list to swap.

bool MipResources::DraWin::accuList	(	Time	timeout,
		unsigned int	listNum
	)			[inline]

Identic to swapList. Draw the last pushed objects, delete previous objects.

Returns:

True if the drawing list was correctly swapped, false otherwise.

Parameters:

[in]	timeout	Timeout for swapping retries
[out]	listNum	Number of the list to swap.

---

Member Data Documentation

vector<DraWinList*> MipResources::DraWin::_draWinLists [protected]

lists of _drawWinList pointers (mobile pointers used to toggle between A and B)

vector<DraWinList*> MipResources::DraWin::_draWinListsA [protected]

lists of the first bank of _drawWinLists pointers

vector<DraWinList*> MipResources::DraWin::_draWinListsB [protected]

lists of the second bank of _drawWinLists pointers

vector<unsigned int> MipResources::DraWin::_indexA [protected]

vector<unsigned int> MipResources::DraWin::_indexB [protected]

DraWinVar MipResources::DraWin::_draWinVar

DraWin parameters.

---

The documentation for this class was generated from the following files:

• resources/DraWin/DraWin.h
• resources/DraWin/DraWin.cpp
