MipResources::CommModule Class Reference
[Communication module]

abstract communication module More...

#include <CommModule.h>

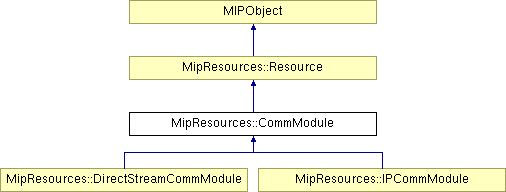

Inheritance diagram for MipResources::CommModule:

List of all members.

Public Member Functions
	CommModule ()
	constructor
bool	storePacketString (string &packetString)
	Store a packet (interface for the listener).
void	requestBox (int task)
	Request a box for the task (interface for the task).
int	requestBox (string taskName)
	Request a box for the task (interface for the task).
bool	receive (int task, CommBox &packets)
	Return a vector of packets to the task (interface for the task).
void	receiveAck (int task, CommBox &packets)
	Acknowledge of the received packets (interface for the task).
void	send (CommPacket packet)
	Send a packet (interface for the task).
virtual bool	sendPacketString (string &packetString, CommNode recipient)=0
	Send a packetString.
string	print ()
	Print function.
Protected Attributes
CommModulePar *	_par
CommModuleVar *	_var
bool	on
	every inherited class constructor must set this flag to true

---

Detailed Description

abstract communication module

Author:

Fabrizio Ramundo

Examples:

exampleCommModule.cpp.

---

Constructor & Destructor Documentation

MipResources::CommModule::CommModule

(

)

[inline]

constructor

---

Member Function Documentation

bool MipResources::CommModule::storePacketString

(

string &

packetString

)

Store a packet (interface for the listener).

Parameters:

packetString

a string containing a serialized CommPacket

Todo:

to protect (left public only for example)

void MipResources::CommModule::requestBox

(

int

task

)

Request a box for the task (interface for the task).

Parameters:

task

the task number (plate)

Examples:

exampleCommModule.cpp.

int MipResources::CommModule::requestBox

(

string

taskName

)

Request a box for the task (interface for the task).

Parameters:

task

the task number (plate)

bool MipResources::CommModule::receive	(	int	task,
		CommBox &	packets
	)

Return a vector of packets to the task (interface for the task).

Parameters:

	task	the task number (plate)
[out]	packets	the CommBox containing pointers to the packets to receive

Examples:

exampleCommModule.cpp.

void MipResources::CommModule::receiveAck	(	int	task,
		CommBox &	packets
	)

Acknowledge of the received packets (interface for the task).

Parameters:

	task	the task number (plate)
[out]	packets	the CommBox containing pointers to the packets just received

Examples:

exampleCommModule.cpp.

void MipResources::CommModule::send

(

CommPacket

packet

)

Send a packet (interface for the task).

Parameters:

packet

the packet to send

Examples:

exampleCommModule.cpp.

virtual bool MipResources::CommModule::sendPacketString	(	string &	packetString,
		CommNode	recipient
	)			[pure virtual]

Send a packetString.

Parameters:

	packetString	a string containing a serialized CommPacket
	recipient	recipient of the packet

Implemented in MipResources::DirectStreamCommModule, and MipResources::IPCommModule.

string MipResources::CommModule::print

(

)

Print function.

This function returns a string that can be printed, with all the informations contained in the class.

Returns:

The string that can be printed.

Reimplemented from MipResources::Resource.

Examples:

exampleCommModule.cpp.

---

Member Data Documentation

CommModulePar* MipResources::CommModule::_par [protected]

CommModuleVar* MipResources::CommModule::_var [protected]

bool MipResources::CommModule::on [protected]

every inherited class constructor must set this flag to true

---

The documentation for this class was generated from the following files:

• resources/CommModule/CommModule.h
• resources/CommModule/CommModule.cpp
